Data queries

The Data Queries extension allows users to create reusable dynamic queries that can be used across the platform.

The feature is accessible from the left navigation menu under:

Application extensions → Data queries

Data queries are mainly used for:

• Dynamic reports datasources
• Workflow data retrieval
• Excel exports using workflow actions
• Reusable filtered datasets

The query engine allows users to define:

• Principal tables
• Joined tables
• Recursive joins
• Selected fields
• Query filters
• Sorting rules

Query overview

A data query represents a configurable dataset generated dynamically from platform entities and relational data.

Each query can:

• Select data from one or multiple tables
• Filter results
• Sort returned rows
• Limit row count
• Expose parameters to end users

Queries are reusable and can be attached to:

• Reports
• Workflow actions
• Data exports
• Custom platform extensions

Query list

The query list page displays all configured queries available in the platform.

Typical actions include:

• Create a new query
• Edit existing queries
• Test query execution
• Reuse queries in reports and workflows

Query configuration

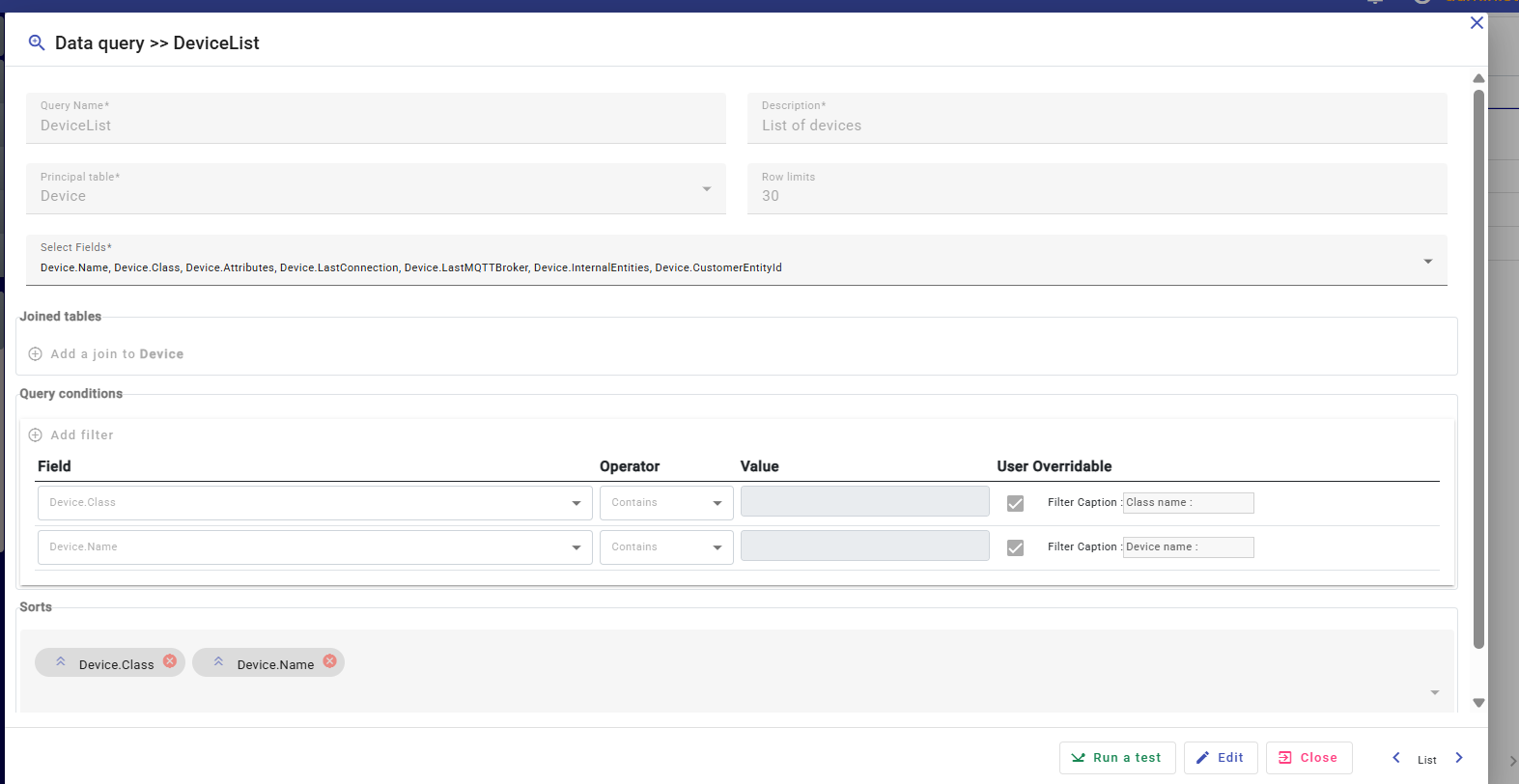

The query editor allows users to configure all aspects of the query.

Main configuration fields:

Principal table

The principal table defines the main datasource of the query.

Examples:

• Device
• Alarm
• KPI
• Customer
• Workflow execution

The selected table becomes the base entity used for:

• Field selection
• Joins
• Filters
• Sorting

Selecting fields

The Select Fields section allows users to define which fields are returned by the query.

Examples:

• Device.Name
• Device.Class
• Device.LastConnection
• Device.Attributes

Only selected fields are included in:

• Report datasets
• Workflow outputs
• Exported Excel files

Selecting only required fields is recommended for better performance.

Joined tables

Queries support joins between related tables.

The Joined tables section allows users to:

• Add related tables
• Navigate relationships
• Extend accessible fields
• Build complex datasets

Supported capabilities include:

• Standard joins
• Recursive joins

This makes it possible to create advanced queries spanning multiple related entities.

Example use cases:

• Devices with customer information
• Alarms with device metadata
• KPI results with organizational hierarchy

Query conditions

The Query conditions section defines filtering rules applied to the query.

Each filter contains:

• Field
• Operator
• Value

Typical operators:

• Equals
• Contains
• Greater than
• Less than
• Starts with

Filters help restrict returned data and improve dataset relevance.

User overridable filters

Filters can be configured as:

• Fixed filters
• User overridable filters

Fixed filters

Fixed filters are always applied and hidden from end users.

These filters are useful for:

• Security restrictions
• Tenant isolation
• System-level filtering
• Internal report logic

User overridable filters

User overridable filters allow end users to provide criteria dynamically when generating reports or executing exports.

For each overridable filter, administrators can configure:

• Default value
• Filter caption displayed to the user

Example:

• Class name
• Device name

This enables the creation of reusable and interactive reports.

Sorting data

The Sorts section defines the ordering of returned rows.

Users can:

• Add multiple sort fields
• Configure ascending or descending order
• Reorder sort priority

Example:

• Sort by device class
• Then sort by device name

Sorting improves readability and report organization.

Row limits

The Row limits field defines the maximum number of rows returned by the query.

This helps:

• Improve performance
• Avoid excessive dataset generation
• Optimize report execution
• Reduce export size

Testing queries

The query editor includes a Run a test action.

This feature allows users to:

• Validate query configuration
• Verify joins and filters
• Preview returned data
• Detect configuration issues

Testing queries before using them in reports or workflows is recommended.

Integration with reports

Data queries are the primary datasource mechanism used by the Reports editor.

A report can bind to a query and use returned datasets to:

• Display field values
• Build tables
• Generate KPIs
• Create dynamic summaries

Combined with the Reports editor and Scriban engine, data queries provide powerful dynamic reporting capabilities.

Integration with workflows

Queries can also be used inside workflows to retrieve data dynamically.

Typical use cases:

• Export datasets to Excel
• Generate scheduled reports
• Retrieve filtered operational data
• Feed automation actions

The Export data workflow action commonly uses data queries as datasource input.
